BD168 Model Railway Terminal Adaptor Board for Digitrax BDL168

About the Product

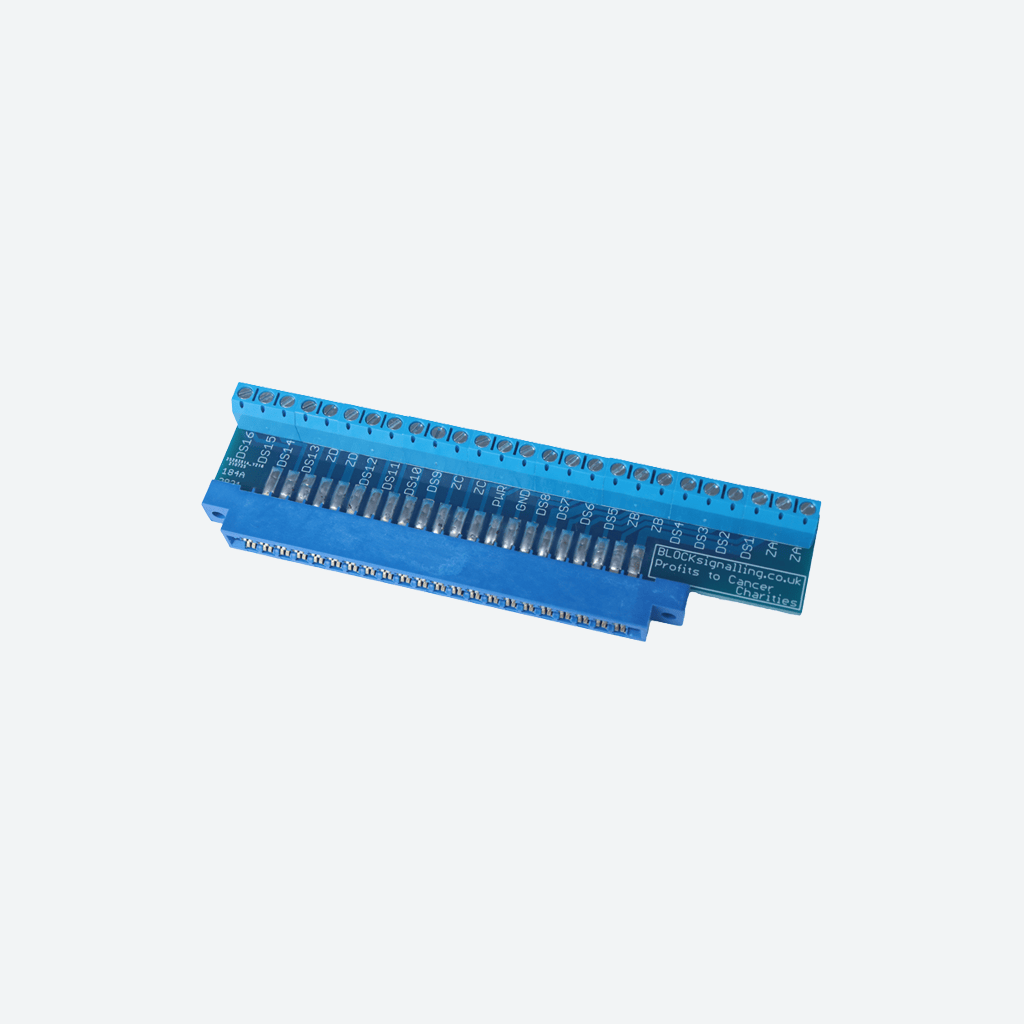

The BLOCKsignalling BD168 is a terminal adaptor board for the Digitrax BDL168 occupancy detector, providing convenient screw-terminal connections and eliminating the need to solder wires directly to the BDL168 PCB connection pads.

The adaptor makes installation, wiring and future board replacement considerably easier. Rather than permanently soldering layout wiring to the BDL168, connections can be made using the clearly accessible screw terminals on the BD168.

Duplicated ZA, ZB, ZC and ZD terminals are provided to simplify installations where these connections need to be commoned together. The N connection, which would normally require a connection to the underside of the BDL168 board, is also brought out to its own convenient screw terminal.

Key Features

• Terminal adaptor board designed for the Digitrax BDL168.
• Eliminates the need to solder layout wiring directly to the BDL168 connection pads.
• Screw terminals provide quick and convenient wiring connections.
• Makes BDL168 installation and future replacement easier.
• Duplicated ZA, ZB, ZC and ZD terminals simplify common connections.
• Dedicated terminal provided for the BDL168 N connection.
• Ideal for permanent model railway control and detection installations.
• Simplifies maintenance and alterations to layout wiring.

Easy BDL168 Connections

The BD168 provides a convenient interface between your layout wiring and the connection pads on the Digitrax BDL168.

This is particularly useful for permanent installations because the layout wiring can remain connected to the terminal adaptor if the BDL168 needs to be removed or replaced, avoiding the inconvenience of repeatedly soldering connections directly to the detector board.

ZA, ZB, ZC, ZD & N Connections

The ZA, ZB, ZC and ZD connections are duplicated, making it easier to link or common these terminals where required.

The N connection is also brought out to its own screw terminal, avoiding the need to make the normal connection directly to the underside of the BDL168 board.

Supporting Macmillan Cancer Support

For every BD168 Terminal Adaptor Board sold, £5 is donated to Macmillan Cancer Support.
