BOD2-NS Train Block Occupancy Detector

The BLOCKsignalling BOD2-NS is a low-cost infra-red train detector designed to indicate the presence of trains anywhere on a model... Read More

Regular price: £16.99
Sale price: £16.99
Regular price

Out Of Stock

If your item isn’t quite right, you may return it within 30 days of receipt, provided it is unused and in its original condition. Please contact us before returning any items.

Orders are dispatched promptly from the UK using reliable delivery services. You’ll receive confirmation once your order has been dispatched.

About the Product

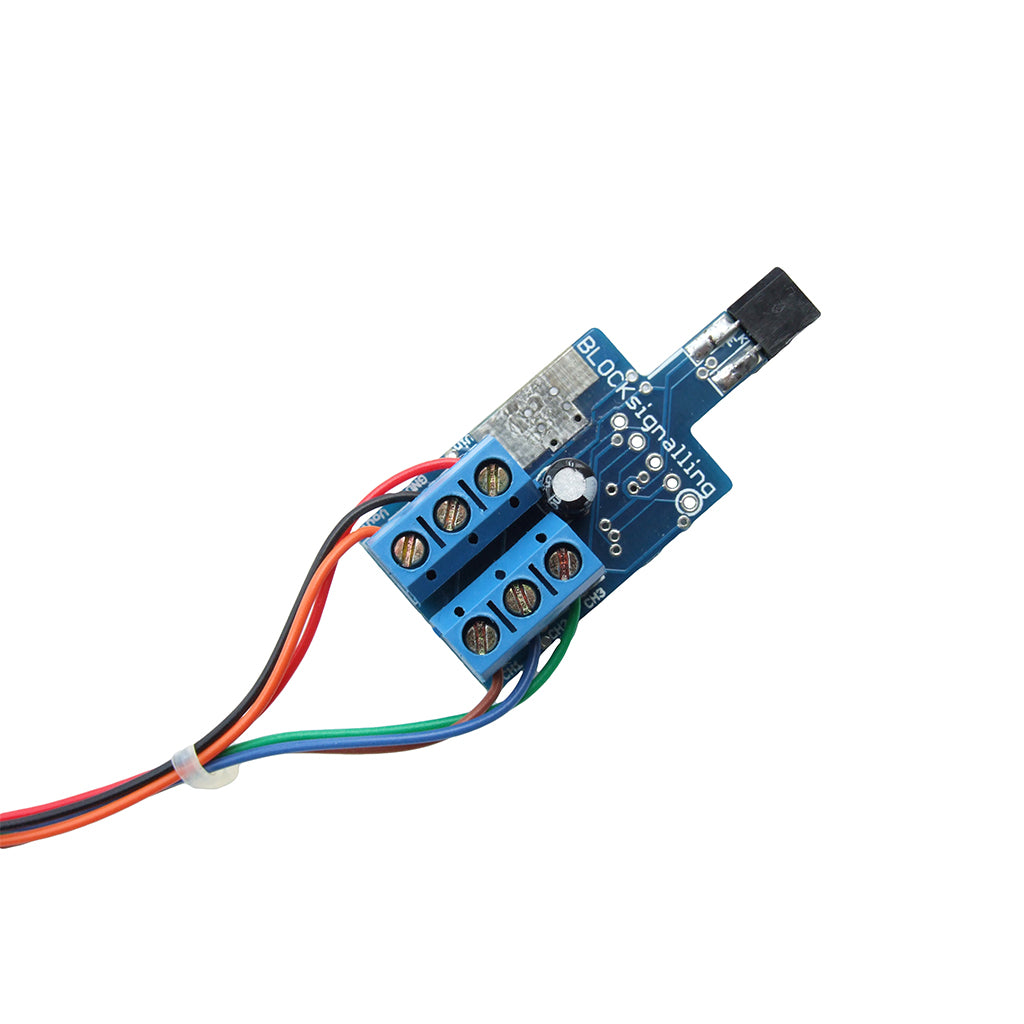

The BLOCKsignalling BOD2-NS is a low-cost infra-red train detector designed to indicate the presence of trains anywhere on a model railway layout. Manufactured in the UK by BLOCKsignalling, the module is engineered to provide realistic operation with ruggedness and long-term reliability, ensuring dependable performance over many years of use.

Using reflected infra-red (IR) light, the BOD2-NS detects trains as they pass over the sensor without the need for track isolation or an external light source. This makes it ideal for installation in tunnels, hidden sections of track, or scenic areas. When a train crosses the sensor, the module changes its output state to indicate train presence.

Two LED outputs and a small relay output can be connected. Under normal conditions, one LED is illuminated to indicate “no train present.” When a train is detected, this LED is extinguished and the second LED illuminates. If a relay is connected, it energises at the same time. These indicators can be mounted on a control panel to provide a clear visual indication that a train has crossed the sensor.

The module can be programmed to reset immediately once the train has cleared the sensor, making it ideal for uncoupling manoeuvres, or to reset after a delay to provide realistic track occupancy indication.

Key Features

Infra-red train detection using reflected IR light
Suitable for installation anywhere on the layout, including tunnels
No external light source or track isolation required
Supports two LED indicators for train presence status
Optional relay output energises when a train is detected
Immediate or delayed reset options to suit different operating requirements
Designed and manufactured in the UK

Compatibility Information

The BOD2-NS can be powered from 12V to 25V DC, 12V to 16V AC, or by direct connection to the DCC bus. It is suitable for use on both analogue and digital layouts of all scales. Relay, LEDs, and wiring are not included.
