5mm Bi-Colour Red/Green LEDs - Pack of 8

About the Product

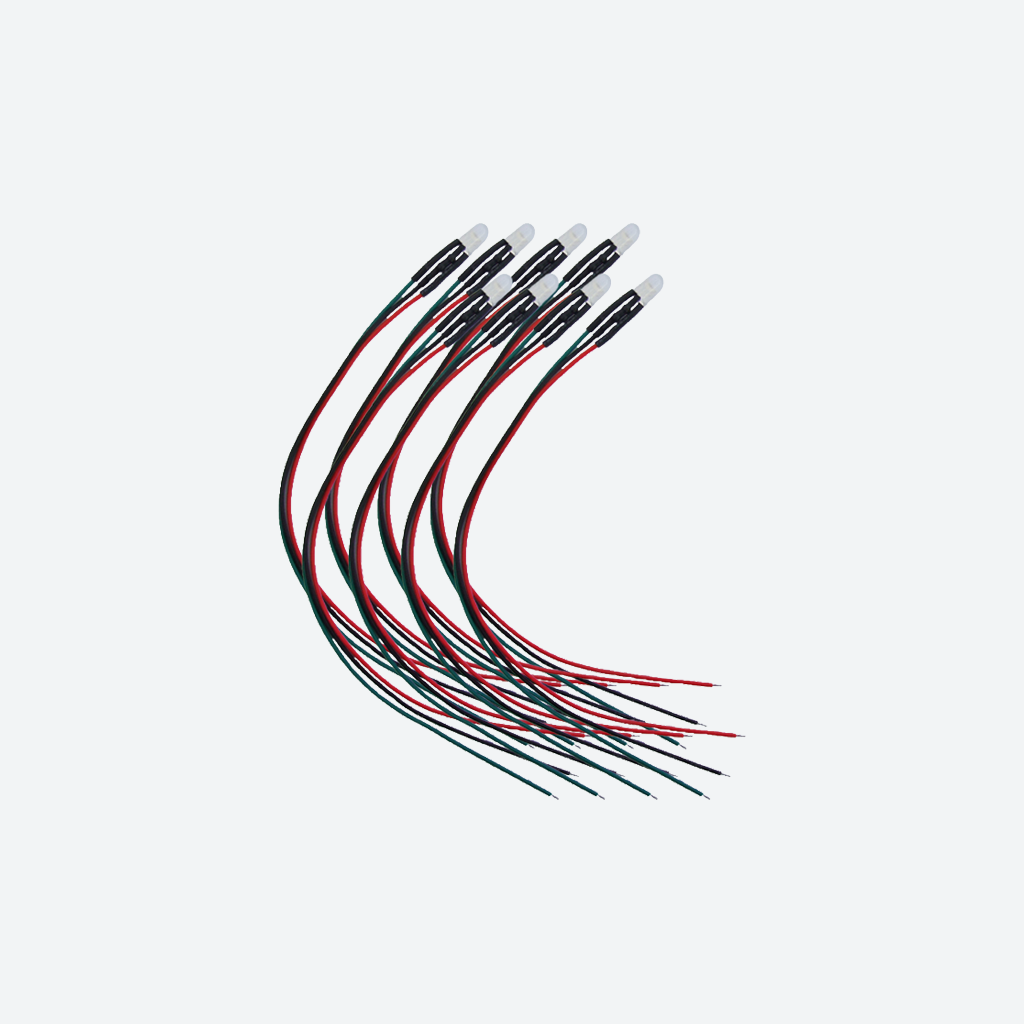

A pack of 8 pre-wired 5mm red/green bi-colour LEDs, ideal for model railway control panels, mimic panels and points position indication.

Each LED provides both red and green indication from a single 5mm LED and is wired as common anode, with the black wire providing the common anode connection.

Built-in resistors are fitted for each LED colour, allowing operation from a 5V to 12V DC supply without requiring additional series resistors.

Key Features

• Pack of 8 pre-wired 5mm bi-colour LEDs.
• Red and green indication from a single LED.
• Common-anode configuration.
• Black wire is the common anode connection.
• Resistors fitted for both LED colours.
• Suitable for 5V to 12V DC operation.
• Approximately 150mm lead length.
• Ideal for model railway control and mimic panels.
• Suitable for points position indication.

PPI4-DC Compatibility

These LEDs are suitable for use with the BLOCKsignalling PPI4-DC Model Railway Points Position Indicator, allowing each point position to be displayed using a single red/green bi-colour LED.

Specifications

• LED Size: 5mm.
• Colours: Red / Green.
• LED Type: Bi-colour.
• Configuration: Common anode.
• Common Wire: Black.
• Operating Voltage: 5V to 12V DC.
• Resistors: Pre-fitted for each colour.
• Lead Length: Approximately 150mm.
• Quantity: 8 LEDs.
