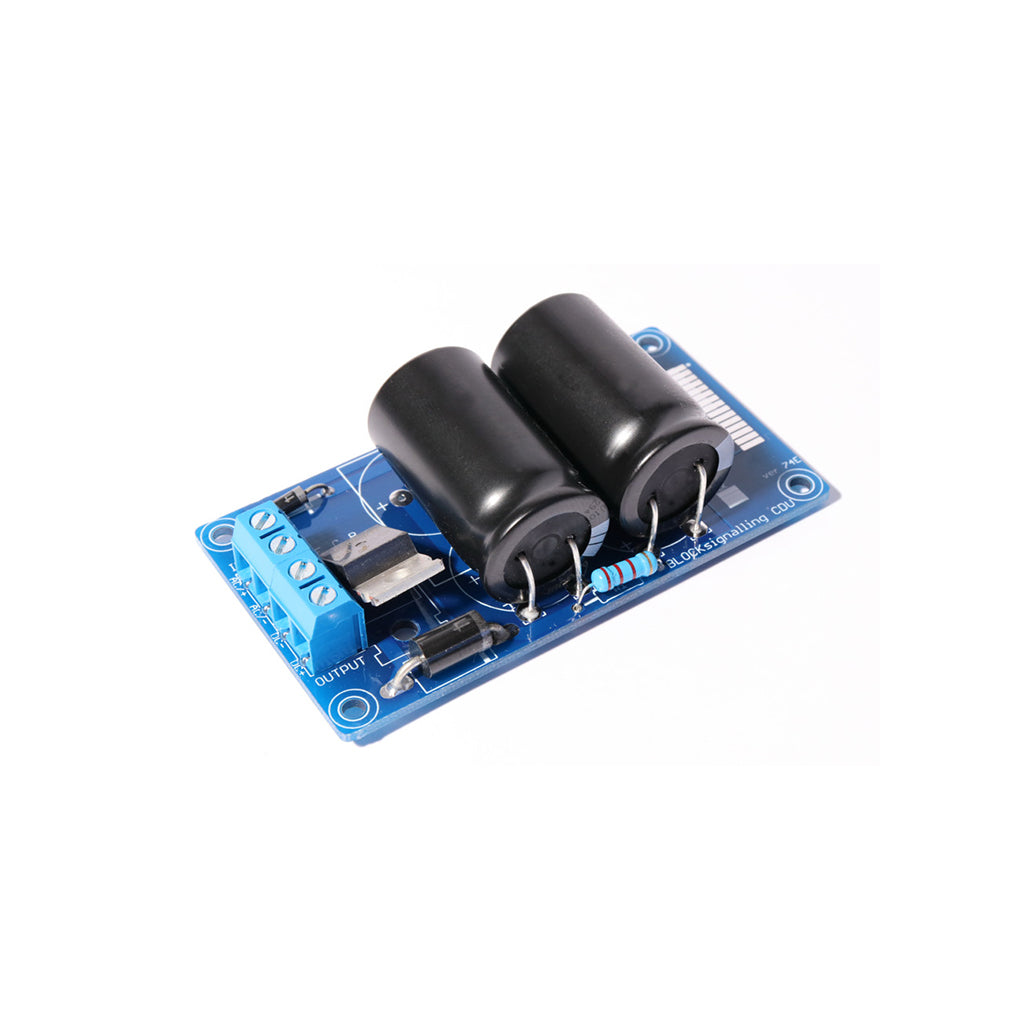

CDU2C-FC Fast Charge Capacitor Discharge Unit

About the Product

The BLOCKsignalling Capacitor Discharge Unit (CDU) stores electrical energy in capacitors and releases it as a short, high-current pulse when a switch is operated. This provides reliable operation of points by delivering a burst of current that is greater than a transformer can supply directly.

In addition to improving points operation, the CDU protects points motors from burn-out by limiting any sustained current caused by faults in the switching circuit. It also helps prevent voltage fluctuations across the rest of the layout. This dual-capacitor version is suitable for medium-sized layouts.

Key Features

• Provides a high-current pulse to reliably operate points motors.
• Helps prevent points motor burn-out by limiting subsequent current flow.
• Reduces voltage fluctuations across the rest of the layout.
• Fast capacitor charging allows for quicker recovery between operations.
• Built-in LED indicators display the operating status of the unit.
• Available in versions with different storage capacities to suit all layout sizes.
• Fitted with a ready indicator light, with versions available that support a remote ready light.

Electrical & Application Information

This unit is fitted with two capacitors and is designed for medium-sized layouts.

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
