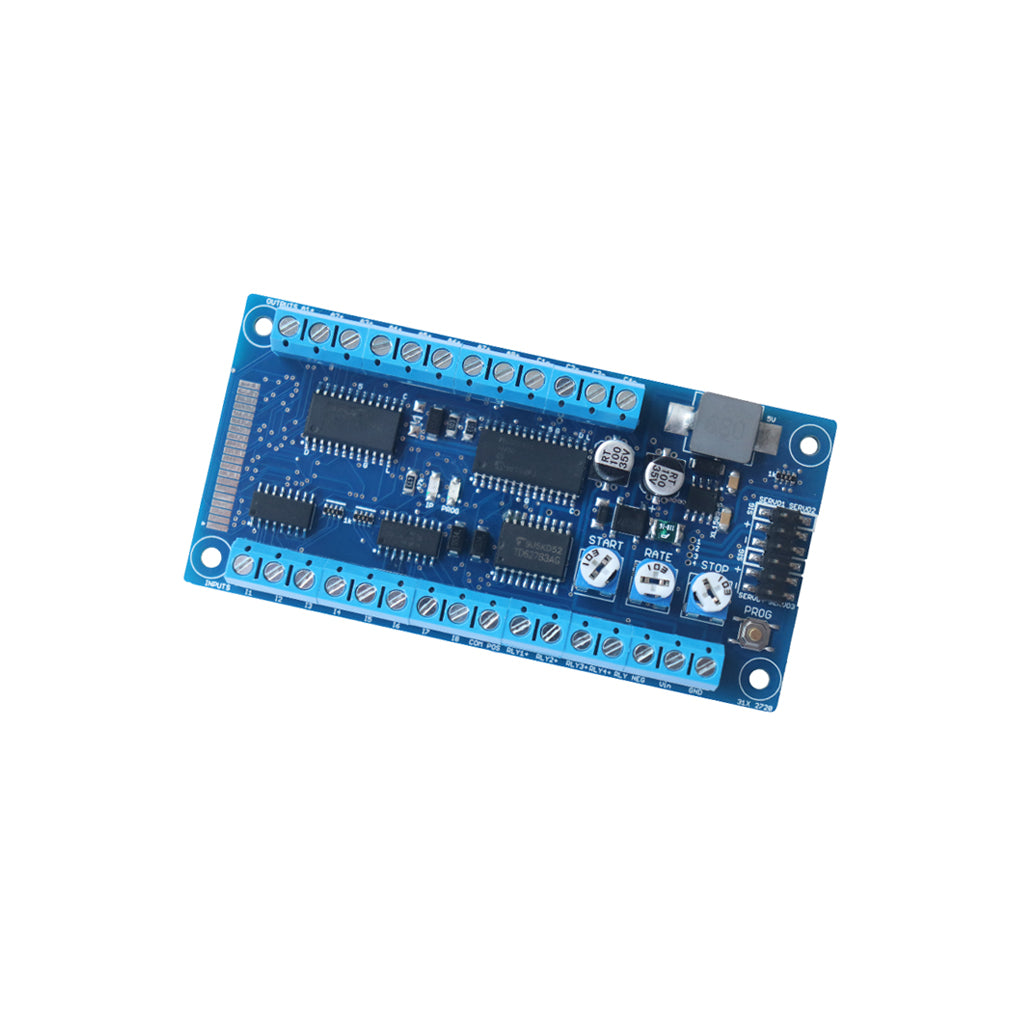

SRV4 Servo Controller (4-channel)

About the Product

The BLOCKsignalling Smart ServoSwitch SRV4 is designed to operate up to four servos, moving each one smoothly between its preset start and stop positions whenever a control input is activated. It provides a flexible and reliable solution for controlling servos used in points, signals, and other layout mechanisms.

All key parameters for each servo, including start position, stop position, and movement speed, are easily adjusted using the built-in controls on the module, allowing precise setup without the need for additional programming equipment.

Key Features

• Supports connection of up to four servos.

• Each servo moves between its preset start and stop positions when the corresponding control input is switched.

• Servo start position, stop position, and movement speed are easily adjustable using on-board controls.

• Provides outputs to operate two-aspect signals and control panel LEDs.

• Allows connection of external relays for frog polarity switching.

• Inputs can be connected to DCC accessory decoders to enable DCC control of servo motors.

• Quick and easy to set up and configure.

Electrical Requirements

• Requires a 12V DC power supply.

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
