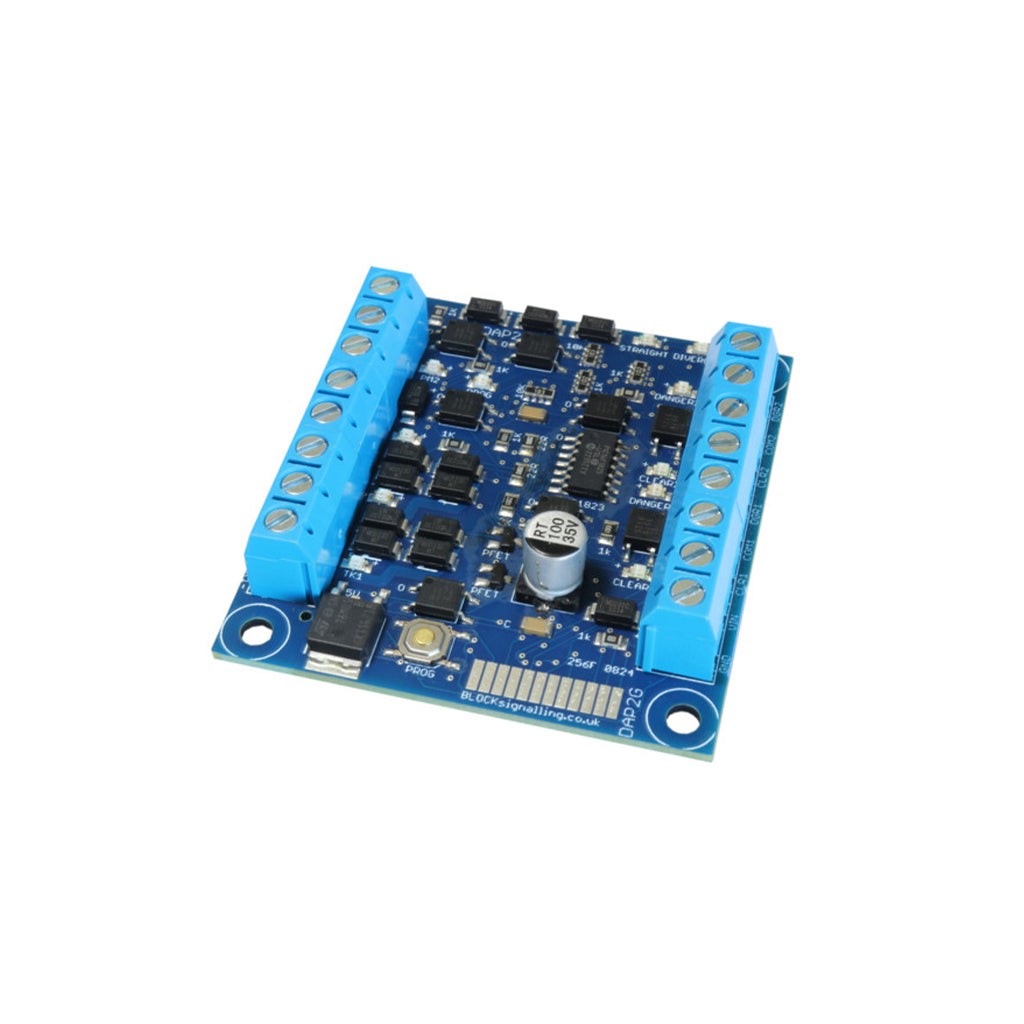

DAP2-G Semaphore Signal Controller for Dapol Servo Gantry Signals

About the Product

The BLOCKsignalling DAP2-G is designed to automate Dapol motorised junction signals*, automatically operating the correct signal arm based on the route set by the points (turnouts). This allows realistic, hands-free signal operation that accurately reflects track and points status.

The module monitors track current to detect approaching trains and also monitors points operation to determine their position. Using this information, the DAP2-G automatically controls the connected Dapol servo signal to display the correct aspect for the selected route.

Key Features

• Monitors track current to detect the presence of trains approaching the points.
• Monitors points operation to determine the current turnout position.
• Automatically operates the correct Dapol servo signal arm for the selected route.
• Works with both facing (diverging) and trailing (converging) points.
• Programmable delay settings allow timing to be tailored to the layout.
• All inputs and outputs are electrically isolated for safety and reliability.

Electrical Specifications

• Requires a 12V DC power supply.

Additional Information

• Signals are not included.

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
