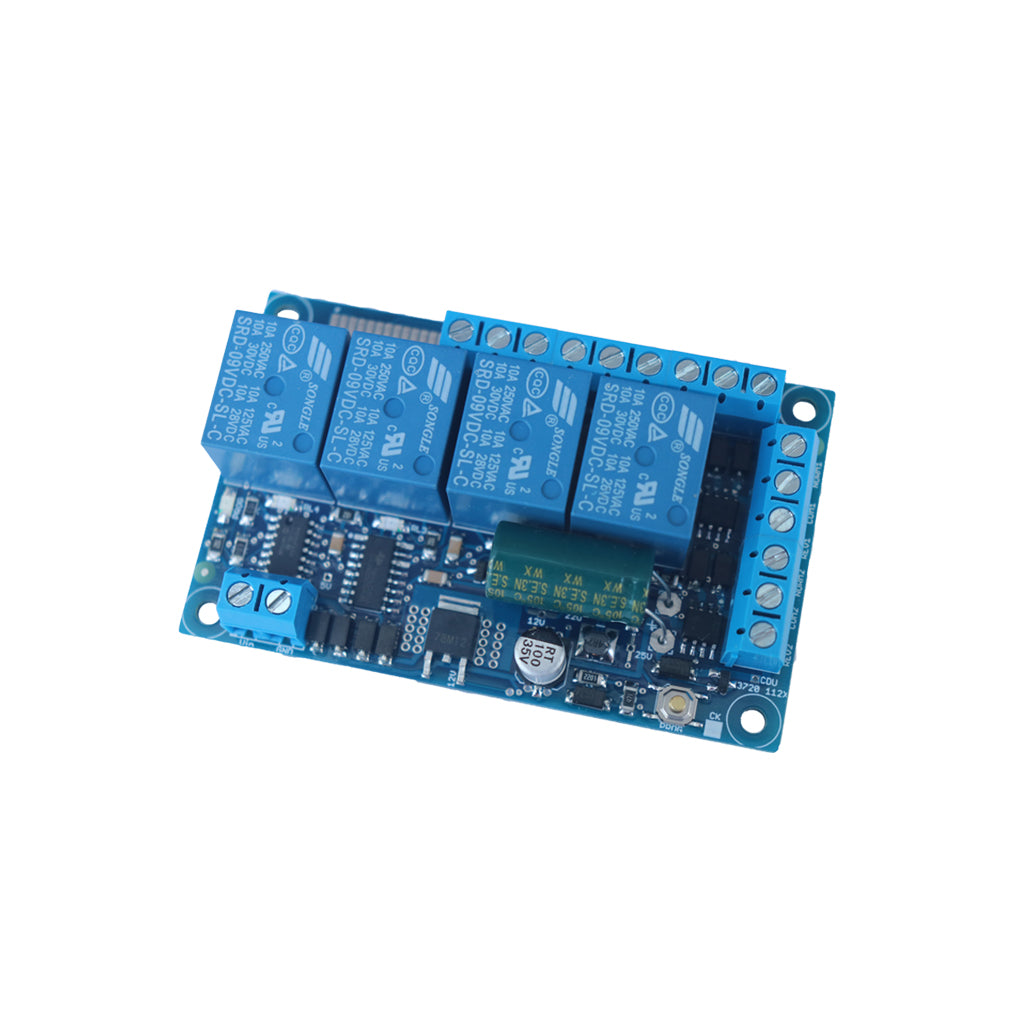

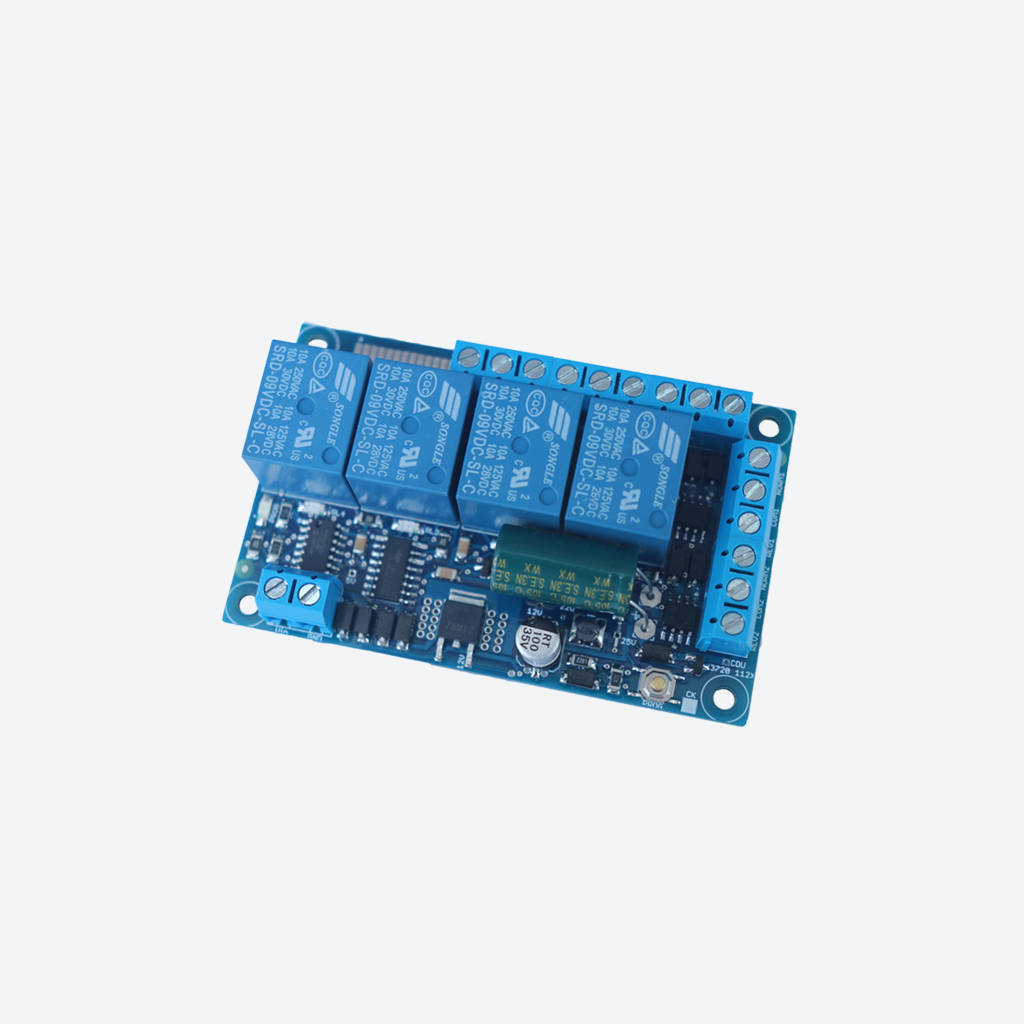

PTS1 Shuttle Controller

About the Product

The BLOCKsignalling PTS1 is designed to automate the operation of up to three DC model trains, running them backwards and forwards along defined lengths of track. It supports a wide range of track configurations and can incorporate solenoid-operated points to create varied and dynamic layout plans.

By automatically changing points and controlling routing, the PTS1 enables fully automated train movements without the need for manual intervention.

Key Features

• Operates one or more DC trains running back and forth along a line.

• Supports a variety of route layouts and track configurations.

• Automatically switches points to route trains as required.

• Includes a built-in Capacitor Discharge Unit (CDU) providing a 25V DC output for reliable points operation.

• Features built-in programs supporting 14 different route combinations.

• Provides programmable delay timers, route switching options, and randomized delays for varied operation.

Electrical Requirements

• Requires a 12V DC power supply.

• Requires a DC locomotive speed controller.

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
