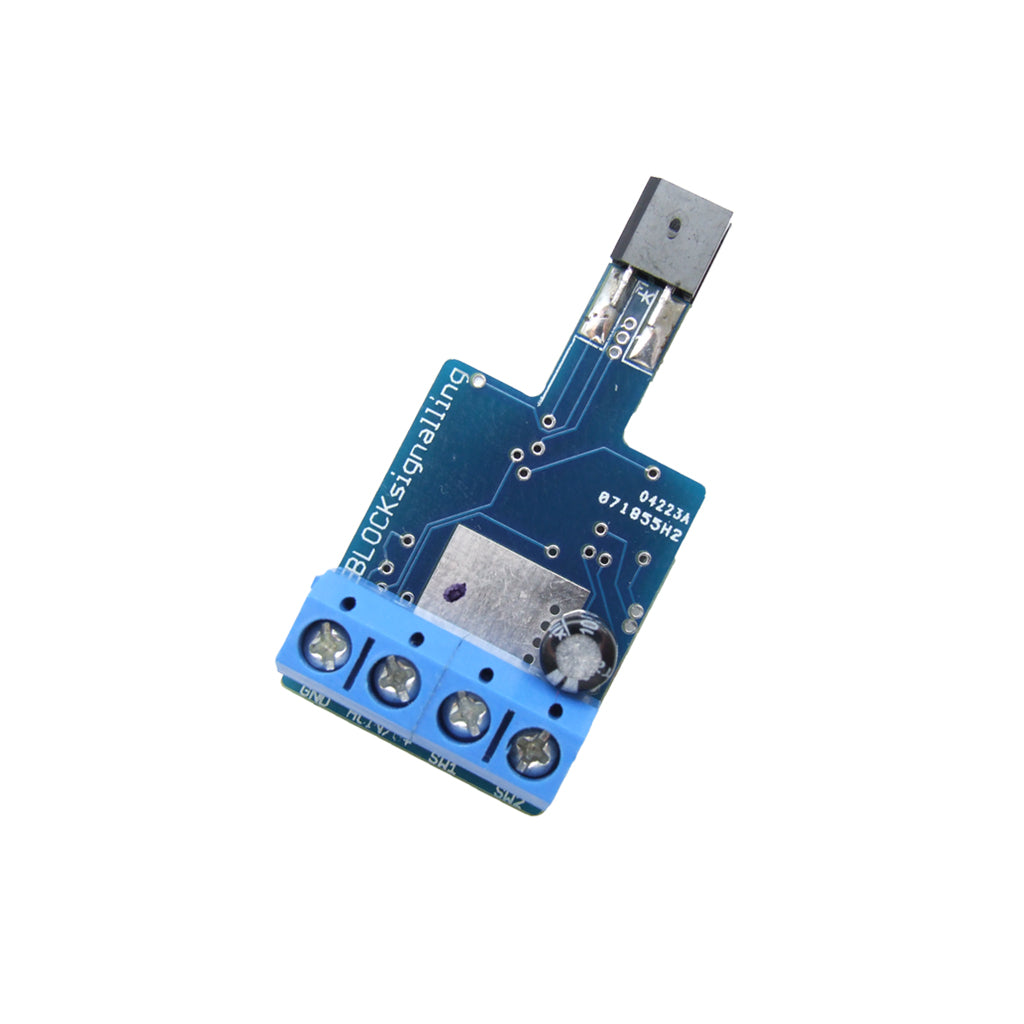

DAP1-NS Semaphore Switcher for Dapol Signals

About the Product

This Signal Controller is designed to detect the presence of trains and automatically operate a semaphore signal in response. It provides an easy way to add realistic, hands-free signal operation to a model railway layout.

The module detects trains by emitting invisible infra-red (IR) light towards the underside of the rolling stock and sensing the reflected light. When a train is detected, a built-in control program operates the connected semaphore signal automatically.

Key Features

• Provides a quick and simple way to add automation to semaphore signals.
• Requires only four wires to connect for fast and straightforward installation.
• No programming is required, though all settings can be adjusted if desired.
• Operates from the same power supply as the signal, simplifying wiring.

Electrical Specifications

• Operates from 9V to 12V DC or 12V to 16V AC.

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
