Replacement Infra-Red Sensors for BLOCKsignalling Modules

About the Product

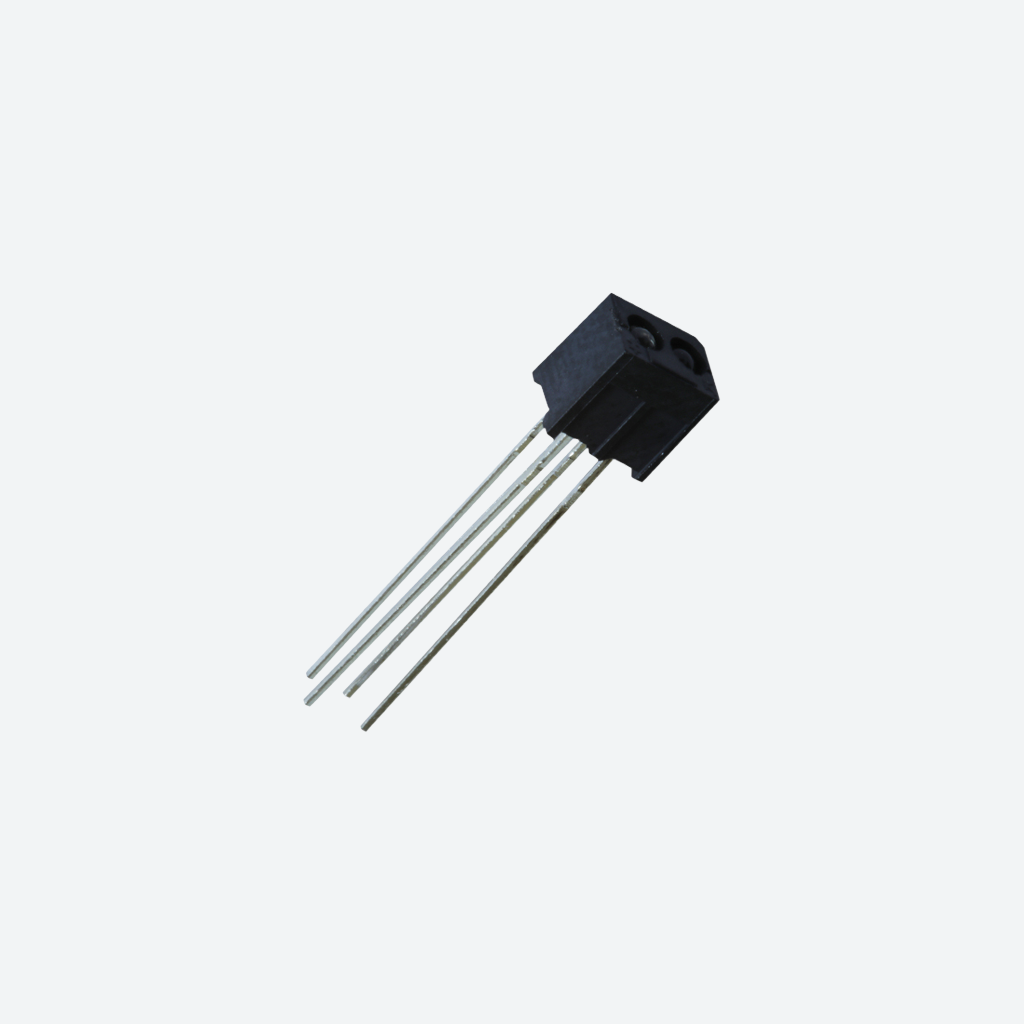

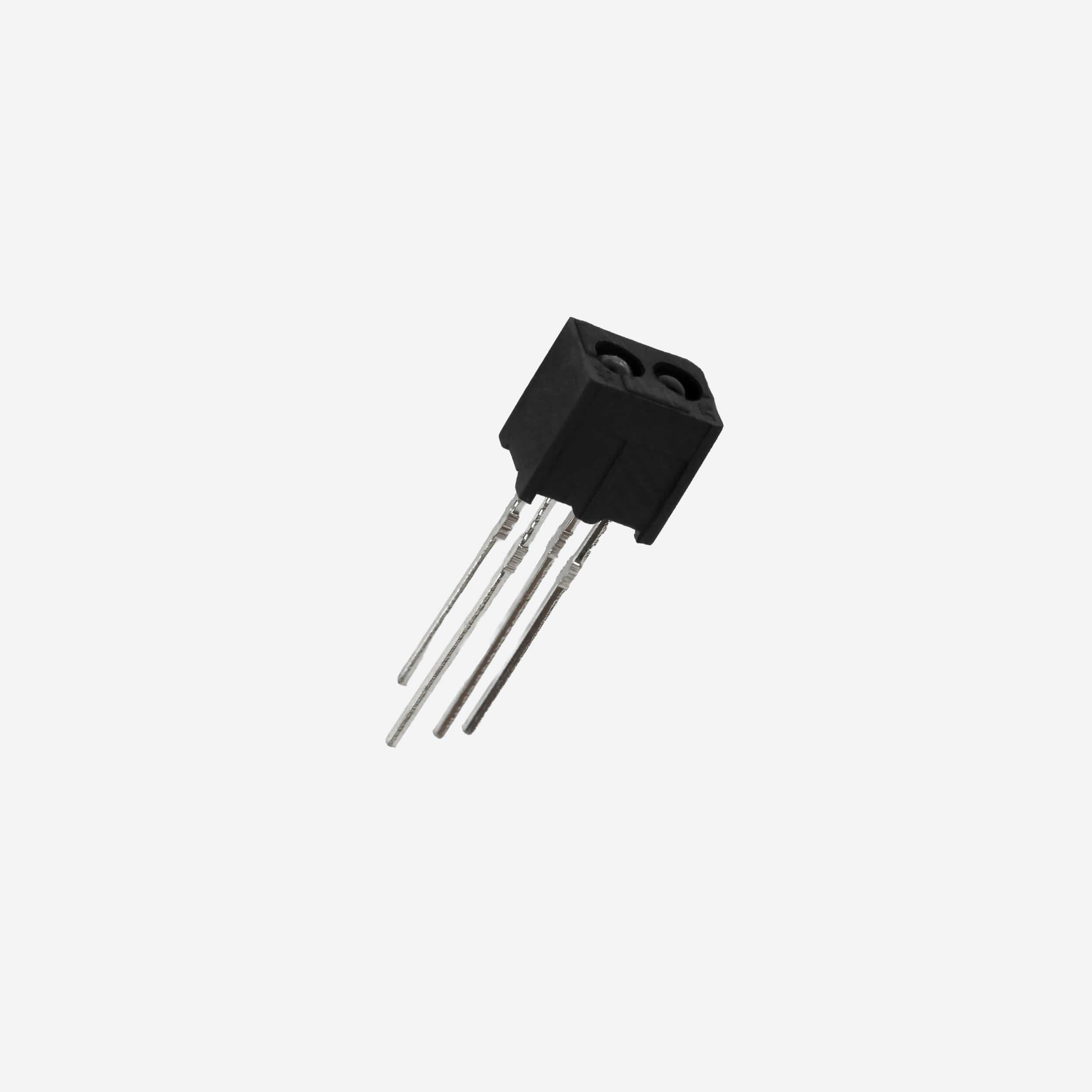

The BLOCKsignalling Replacement Infra-Red Sensor is designed for use with compatible BLOCKsignalling infra-red model railway controllers and train detection modules.

It is a direct replacement for the infra-red sensors supplied with compatible BLOCKsignalling products, making it ideal for replacing a damaged or faulty sensor without replacing the complete controller.

The sensor detects passing trains using reflected invisible infra-red light. These sensors are specifically selected for reliable model railway train detection, with good immunity to sunlight and minimal leakage of stray infra-red light to help prevent unwanted triggering.

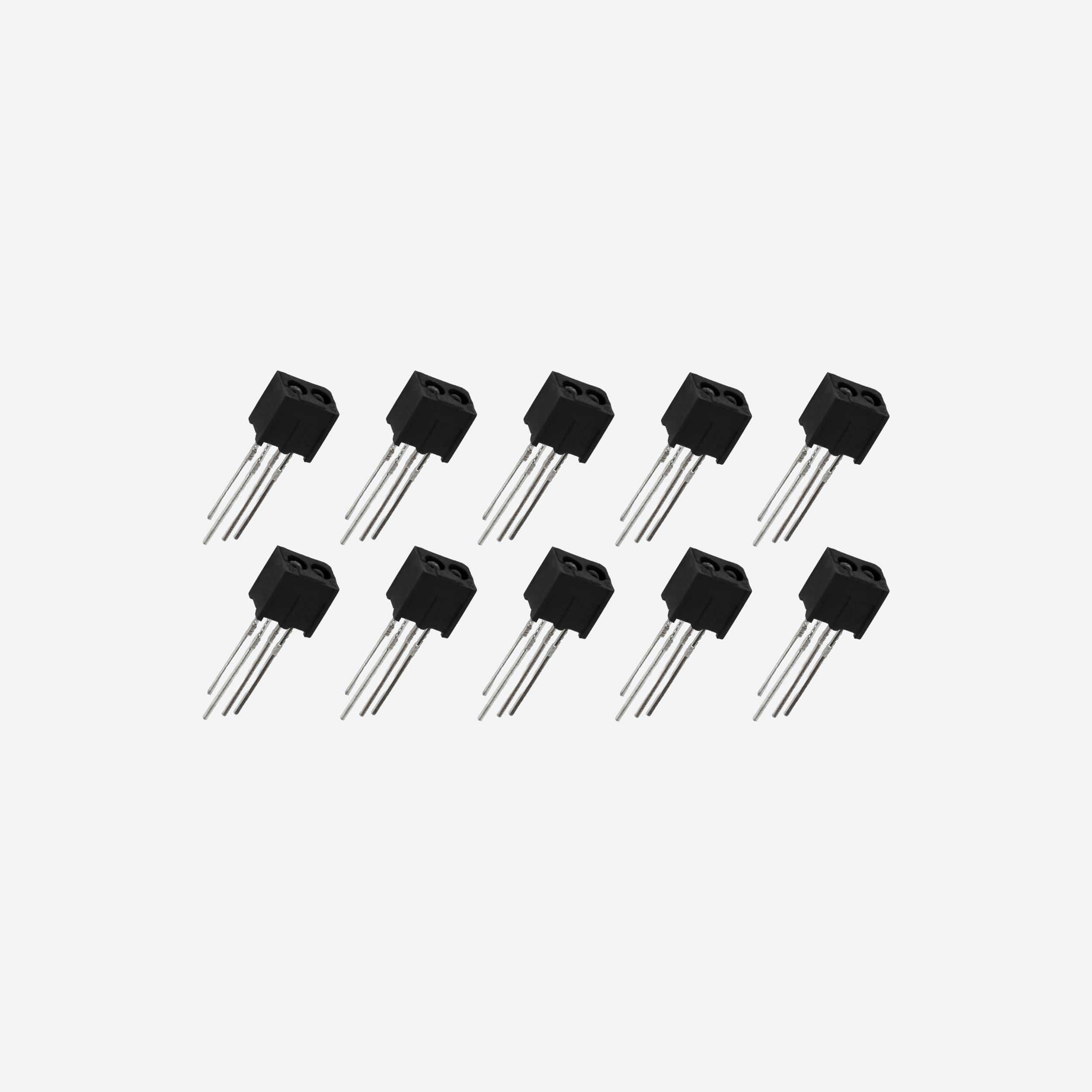

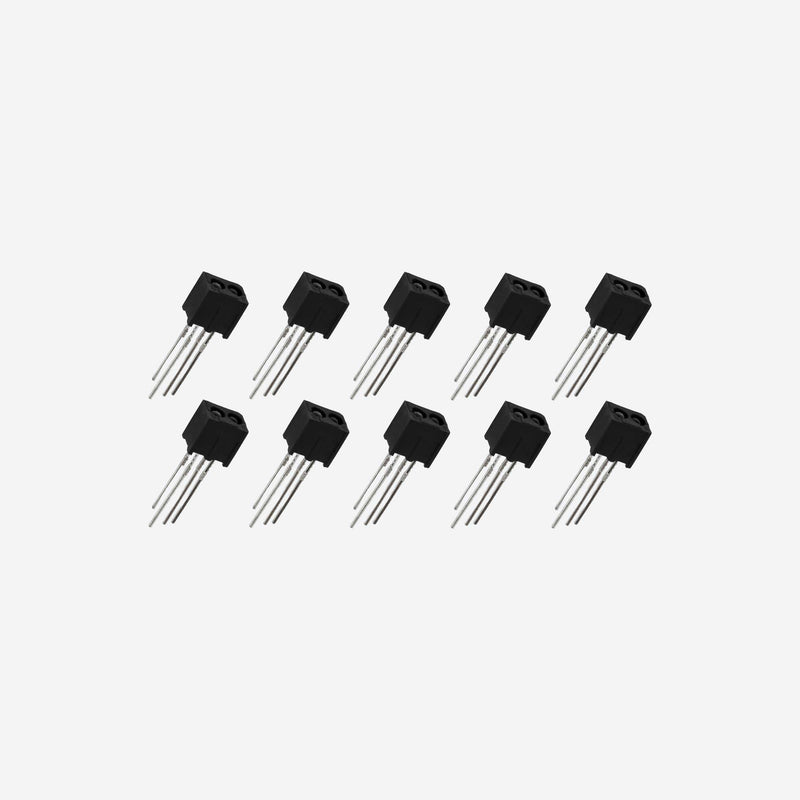

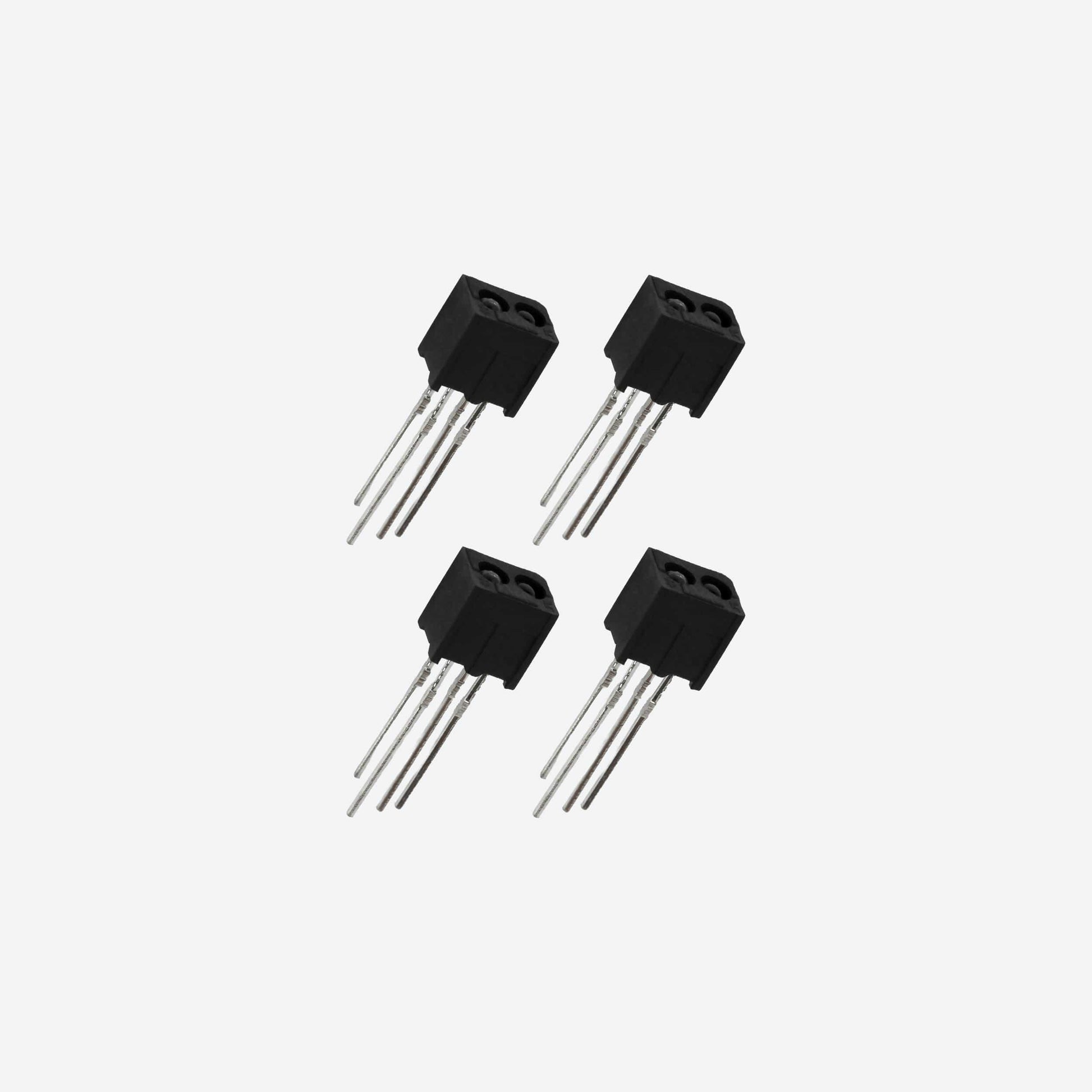

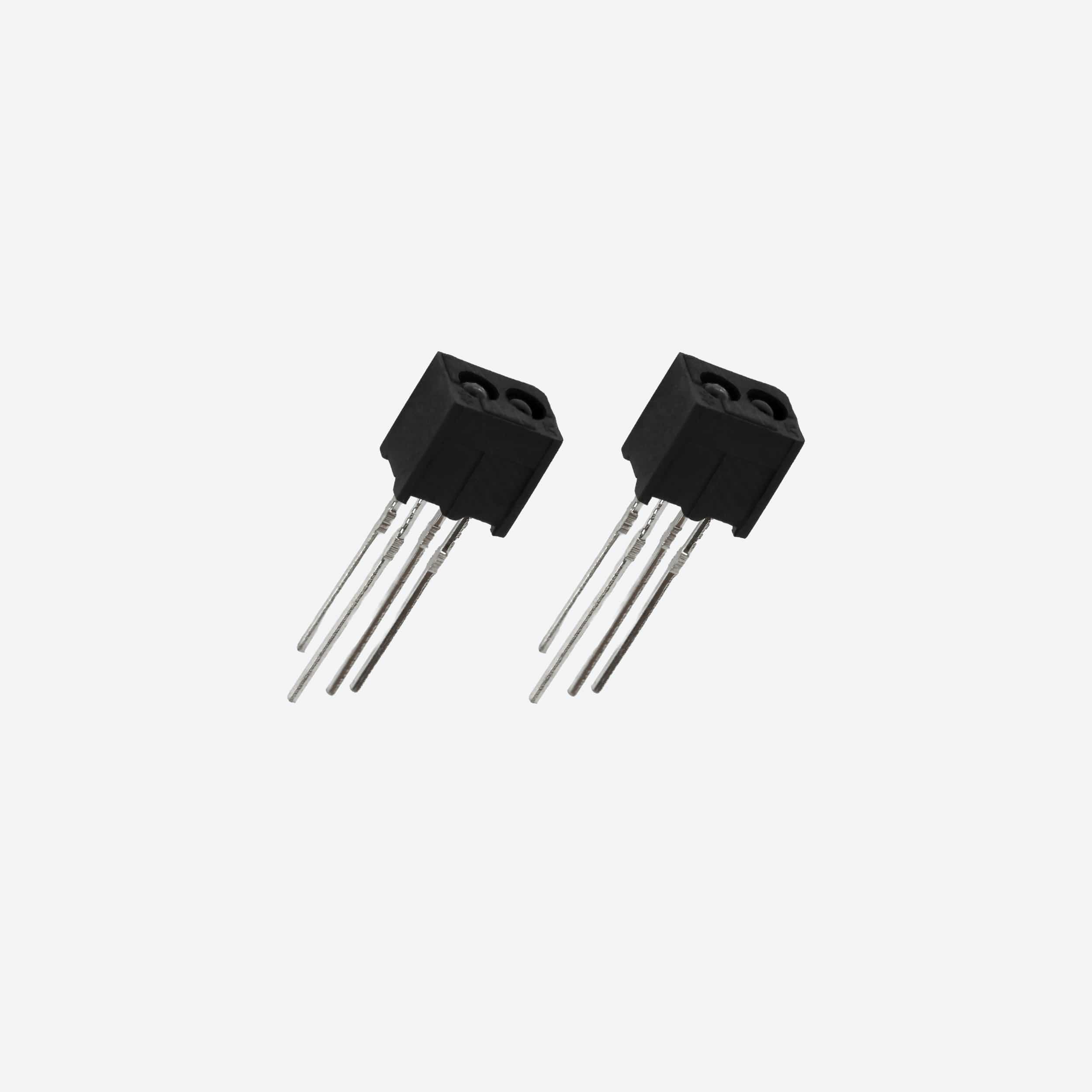

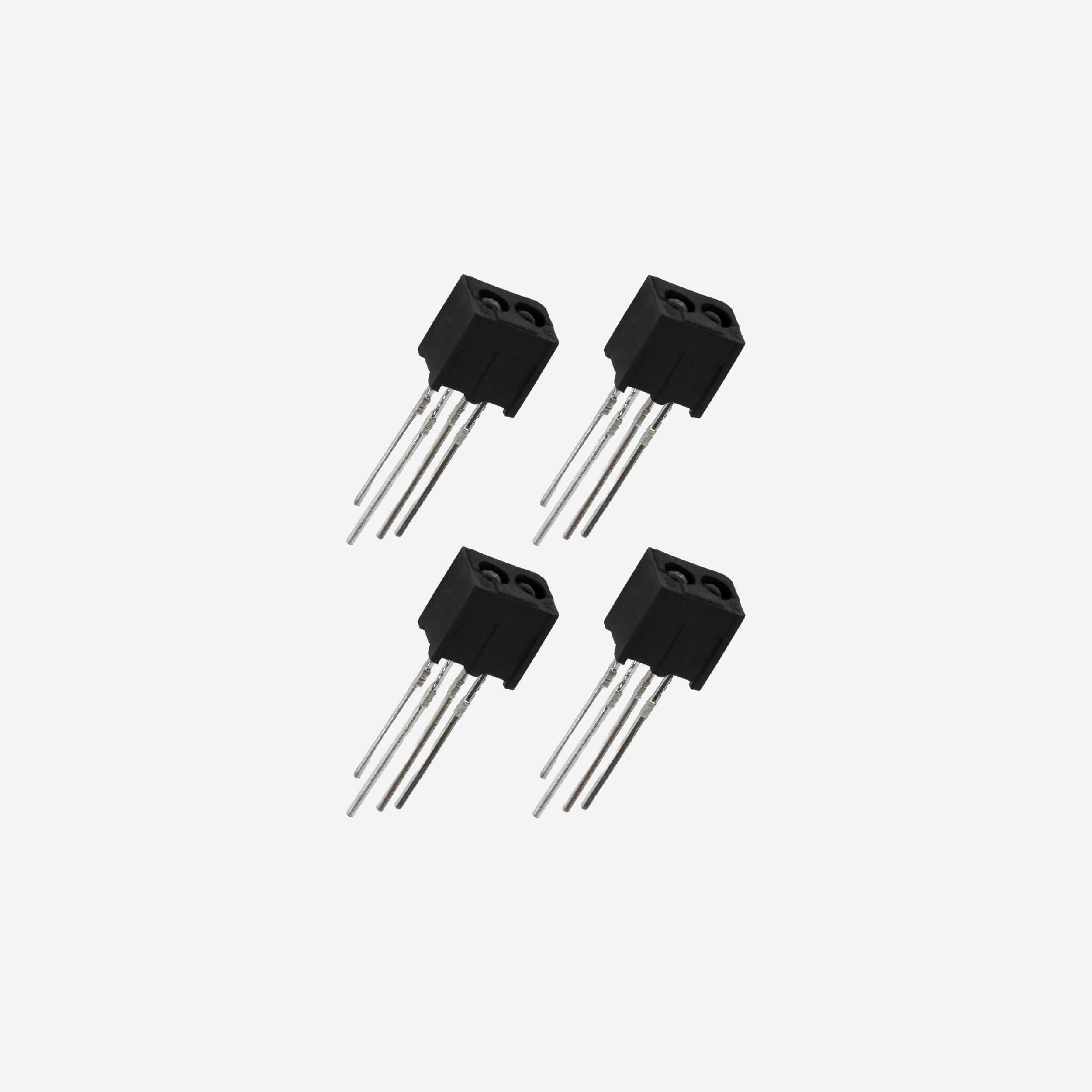

Available individually or in packs of 2, 4 or 10 sensors, making it easy to purchase replacements for a single module or spares for multiple BLOCKsignalling products.

Key Features

• Replacement infra-red sensor for compatible BLOCKsignalling products.
• Designed for automatic model railway train detection.
• Detects passing trains using reflected infra-red light.
• Specifically selected for good immunity to sunlight.
• Low stray infra-red leakage for reliable triggering.
• Suitable for replacing a damaged or faulty original sensor.
• Compact sensor suitable for installation beneath model railway track.

Compatible BLOCKsignalling Modules

This replacement sensor is compatible with the following BLOCKsignalling products:

• REV2
• ASP1A
• ASP2A

• SAS2-IR
• SSM1
• L1
• BOD4-RLY
• SEC1A-DC
• SEC1B-DC

Installation

Install the replacement sensor in the same position and orientation as the original sensor supplied with your BLOCKsignalling module.

Sensor wiring and installation can vary between products, so please refer to the instruction manual for your specific module for the correct connections and positioning.
