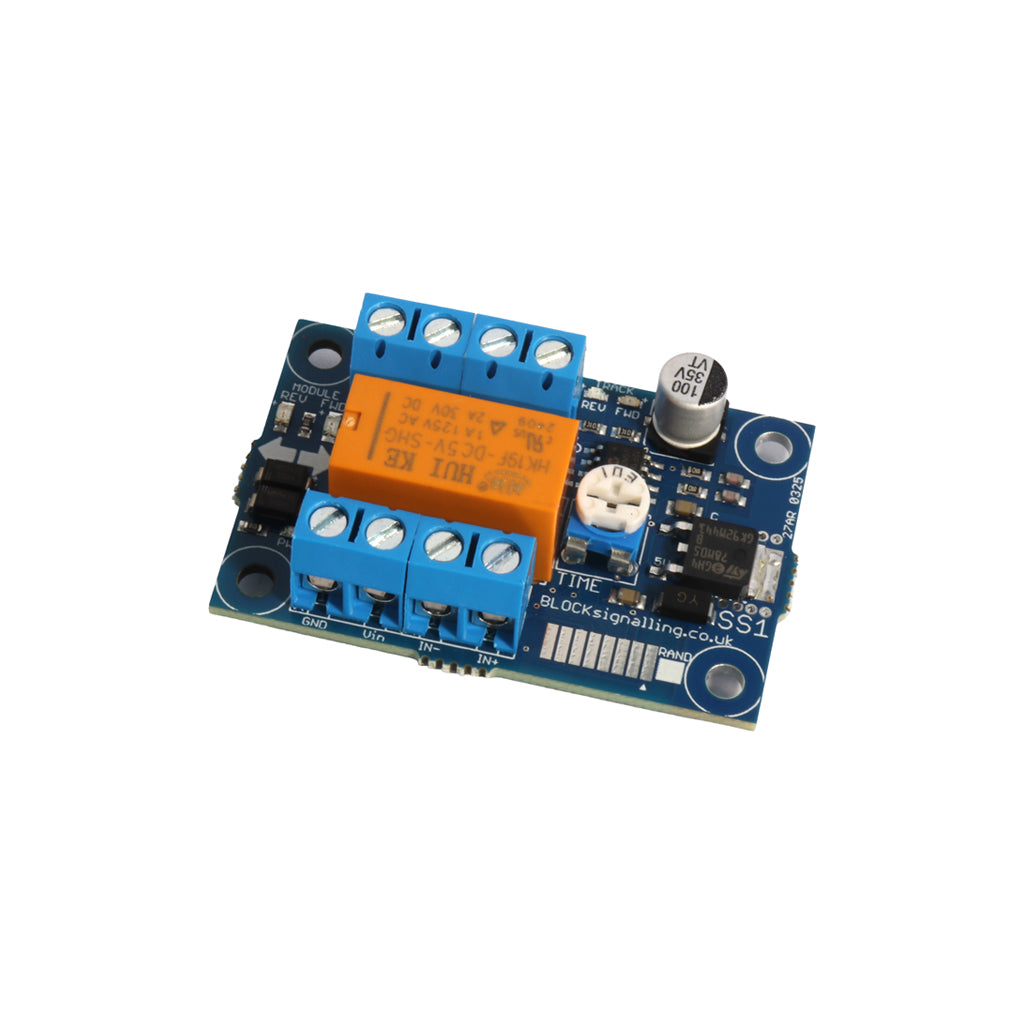

SS1 DC Shuttle

About the Product

The BLOCKsignalling Simple Shuttle is designed to automate a single DC model train running backwards and forwards along a single length of track. At each end of the line, an insulated rail gap stops the train until the module automatically reverses the track current, allowing the train to depart in the opposite direction.

The time between each change in direction is easily adjusted using a simple screwdriver control. Delay times for each direction can be set anywhere between one second and ten minutes, providing flexible and realistic operation.

Key Features

• Automatically operates a DC train back and forth along a single track section.

• Waiting time at each end of the line is adjustable using a simple screwdriver control.

• LED indicators on the module show the current direction of travel.

• Microprocessor-controlled operation ensures accurate and consistent timing.

• Simple wiring and straightforward operation.

Electrical Requirements

• Requires a 12V DC power supply.

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
