SSM1 Station Stop Module

About the Product

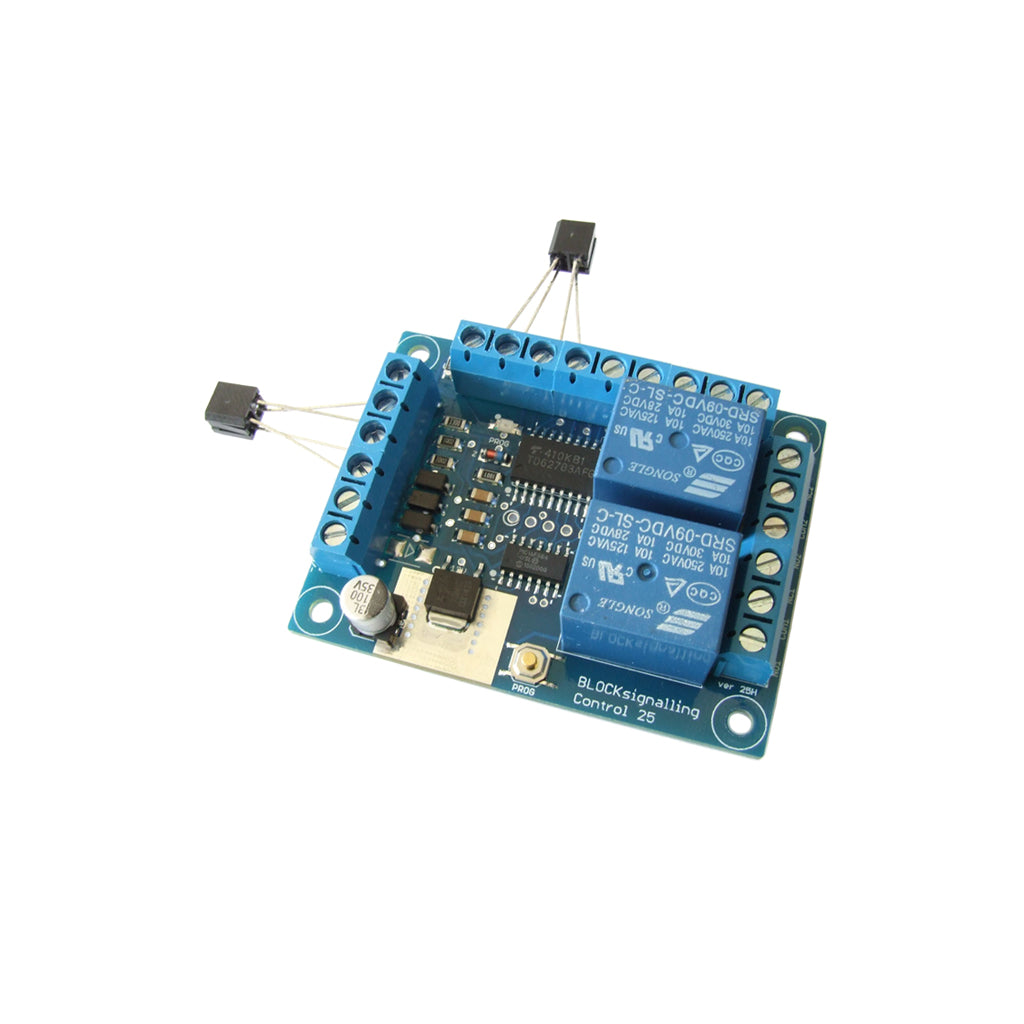

The BLOCKsignalling SSM1 Station Stop Module is designed to automate DC model trains running along a line or around a loop with a station stop. It automatically stops trains at a station platform, controls departure timing, and can reverse the direction of travel on each run if required.

The module uses infra-red sensors mounted below the track to detect trains and stop them accurately without the need for track cutting. Based on the proven SAS2-IR shuttle controller, the SSM1 adds additional operating modes for station stopping and loop operation while retaining full shuttle functionality.

Key Features

• Automatically operates a DC train along a line or around a loop with an automatic station stop.

• Stops trains accurately using infra-red sensors mounted beneath the track, with no track cutting required.

• Supports clockwise and anticlockwise running around a loop, with automatic stopping at a station platform.

• Can operate trains in alternate directions on each departure if required.

• Waiting times at the station or track ends are fully programmable, with fixed or random delay options.

• Optional route indication LEDs can be connected to show trains waiting or in transit.

• Optional two-aspect LED signals (common-cathode only) can be connected, switching to green shortly before departure and returning to red after departure.

• Retains all operating modes of the SAS2-IR, allowing flexible reuse as a shuttle controller.

• Fully programmable to tailor operation to the layout.

Electrical Specifications

• Requires a 12V DC power supply.

• Typical current consumption is approximately 0.25A.

Compatibility & Use

• Designed for DC layouts.

• Suitable for single-line shuttle operation or loop layouts with a station platform.

• Infra-red sensors are mounted below the track and detect trains by reflected light.

Documentation & Support

For detailed information on installation, wiring, programming options, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
