TFL Traffic Light Controller (TFL-1, TFL-2 & TFL-4) 12V DC

About the Product

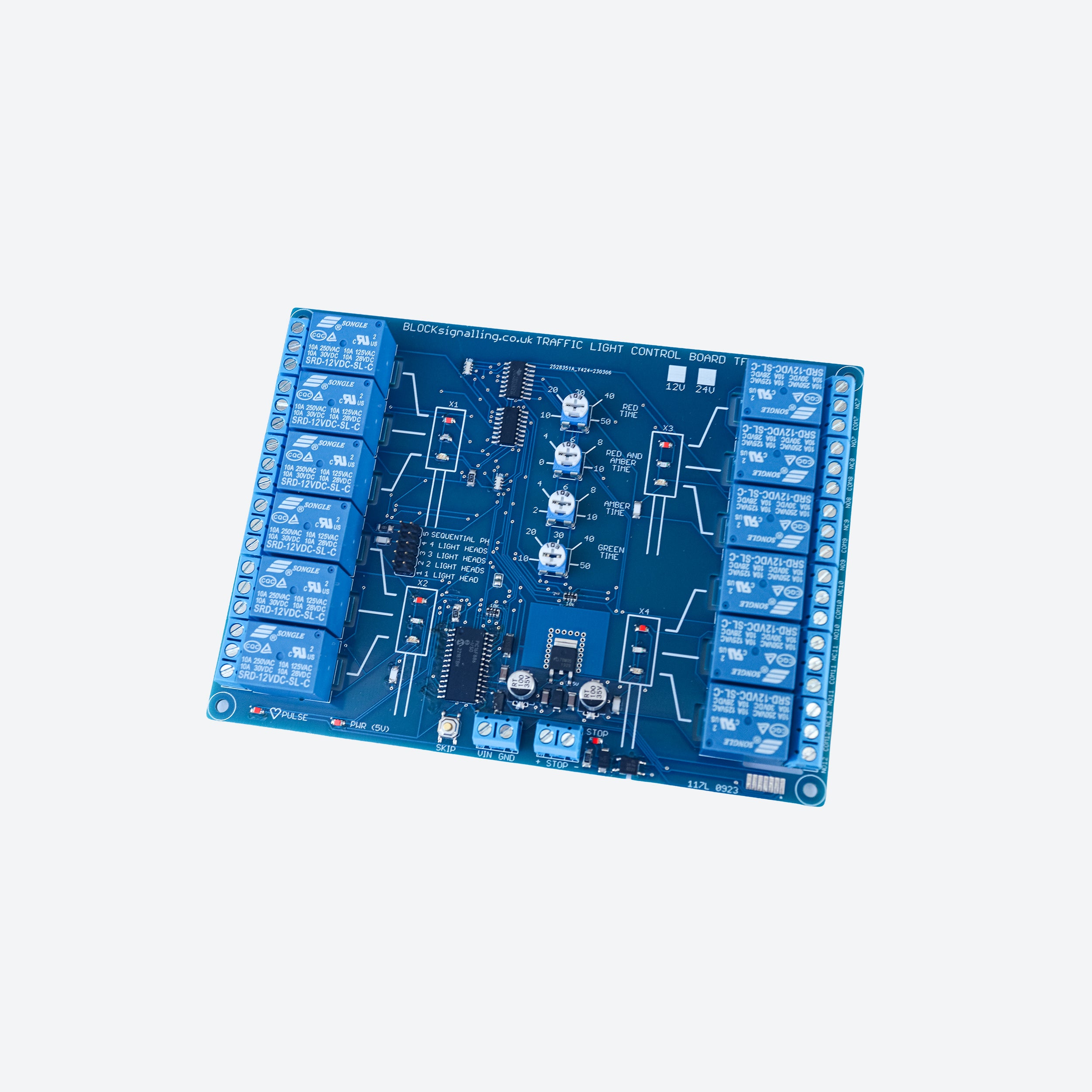

The BLOCKsignalling TFL Traffic Light Controller is a versatile traffic light sequencing module designed for model layouts, playground displays, roadworks simulations, and other miniature traffic control applications. The module can operate in one, two, or four channel versions, the controller automatically operates standard red, amber, and green traffic light heads with fully adjustable timing settings.

The module uses relay-controlled outputs to drive traffic light heads and allows independent adjustment of red, red and amber, green, and amber phases. Multiple operating modes are available, allowing traffic lights to operate sequentially or in paired opposing directions depending on the installation requirements.

A built-in skip button allows the current phase to be instantly advanced, making setup and testing quick and straightforward. LED indicators on the PCB provide visual confirmation of power, processor operation, and traffic light status.

Key Features

• Automatically operates standard red, amber, and green traffic light heads.
• Available in single, dual, or four-head traffic light controller versions.
• Adjustable timing for red, red and amber, green, and amber phases.
• Optional red and amber phase can be disabled for country-specific operation.
• Supports sequential junction control where only one traffic route shows green at a time.
• Alternative paired operation mode for opposing traffic flows.
• Built-in skip button for rapid testing and setup.
• Mimic traffic light LEDs on the PCB show output status.
• Pulse LED confirms correct processor operation.
• Relay outputs provide volt-free contacts rated up to 24V DC at 2A.
• Reverse polarity, overcurrent, and transient protected power input.
• Available in TFL-1, TFL-2, and TFL-4 variants.

Electrical Requirements

• 12V DC power supply required.

Applications

• Model railway layouts.
• Roadworks and alternate-flow traffic systems.
• Playground traffic light installations.
• Display and exhibition traffic control systems.
• Water flume and miniature vehicle layouts.
• Documentation & Support

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
