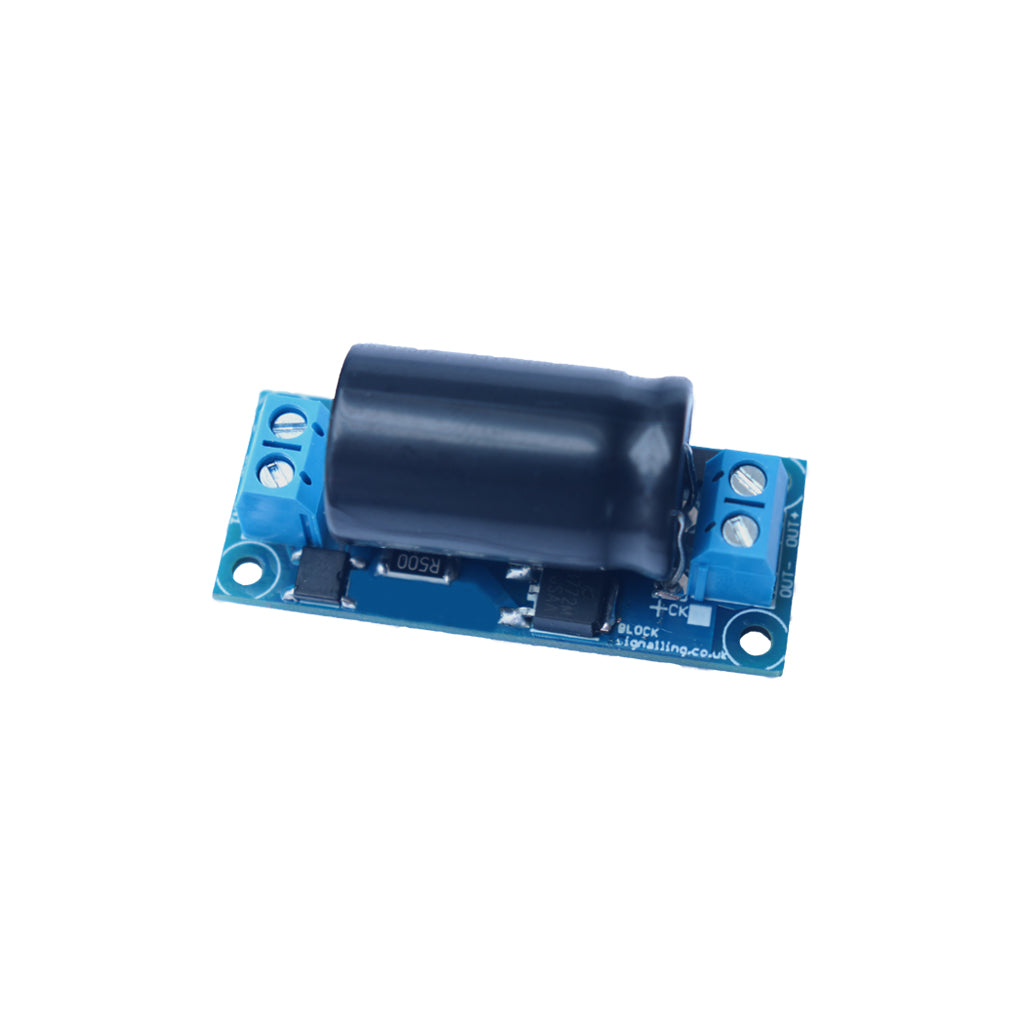

CDU1e Fast Charge Capacitor Discharge Unit

About the Product

The BLOCKsignalling Capacitor Discharge Unit (CDU) stores electrical energy in a capacitor and releases it as a short, high-current pulse when a switch is operated. This burst of energy provides reliable operation of points while drawing far less continuous current than a transformer would otherwise need to supply.

The CDU also protects points motors from burn-out by limiting any sustained current caused by faults in the switching circuit, while helping to maintain stable voltage levels across the rest of the layout. This single-capacitor version is ideal for smaller layouts.

Key Features

• Provides a high-current pulse to reliably operate points motors.
• Helps prevent points motor burn-out by limiting subsequent current flow.
• Reduces voltage fluctuations across the rest of the layout.
• Fast capacitor charging allows for quicker recovery between operations.
• Built-in LED indicators display the operating status of the unit.

Electrical & Application Information

This unit is fitted with a single capacitor and is suitable for smaller-sized layouts.

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
