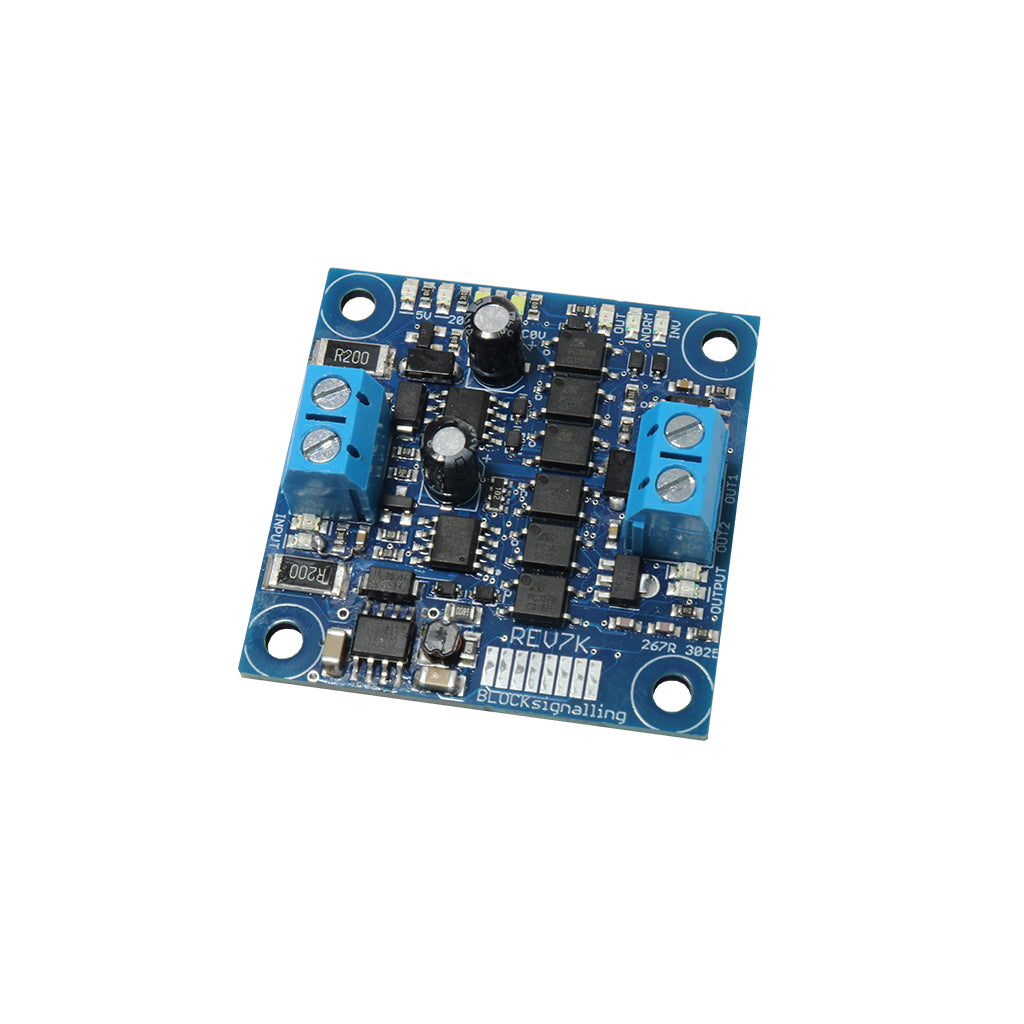

REV7K-4A 15V DC High Power Reverse Loop Module (HM7000 TT:120 Compatible)

About the Product

The BLOCKsignalling REV7K-4A Autoreverser is designed for layouts powered by 15V DC, such as those using the Hornby™ HM7000 system. It provides a reliable solution for layouts that include track arrangements where rail polarity must be reversed automatically.

The autoreverser enables the use of reversing loops, turntables, wye layouts, and figure-of-eight track plans. When a train enters a section of track with a polarity mismatch that would normally cause a short circuit, the unit instantly corrects the polarity, preventing a short and avoiding shutdown of the layout.

Key Features

• Automatically detects polarity mismatches and reverses rail polarity to prevent short circuits.
• Enables the use of reversing loops, turntables, wye layouts, and figure-of-eight layouts.
• High-power design suitable for layouts with higher current demands.
• Rated for use with 15V DC power supplies at currents typically from 1A to 6A.
• Provides reliable operation on DC-powered layouts without interruption.

Compatibility Information

• Designed for use with 15V DC systems, including Hornby™ HM7000 when operated in DC mode.
• Not suitable for use with Hornby™ HM7000 when the rails are fed with DCC; for DCC operation, use the BLOCKsignalling REV1 instead.

Documentation & Support

For detailed information on installation, wiring connections, and troubleshooting, please download the latest instruction manual:

Product Instruction Manual
